Home > Products > rc transmitter > Stable Signal 2.4Hz Channel Futaba Transmitter Made

Stable Signal 2.4Hz Channel Futaba Transmitter Made

Productivity:
5000PCS/Month
Place of Origin:
Guangdong Province, Shenzhen City
Supply Ability:
5000PCS/Month
Certificate:
En71, En62115, CE, RoHS, ASTM F963
  • Ms. Candy Chen

Basic Info

Model No.:  TG06

Product Description

Model NO.: TG06 Function: R/C Aircraft Type: Car Controller Age: >14 Years Power: Battery Certification: En71, En62115, CE, RoHS, ASTM F963 Channels: 2 CH Singal: 2.4GHz Receiver: 2.4GHz OEM: Yes Features: Light & Small,Easy to Control Transport Package: Gift Box Origin: Guangdong Province, Shenzhen City Type: Car Vehicle Type: Rc Controller Cartoon Character: Transmitter Material: Plastic Channel: 2 Channel Name: Futaba Transmitter Remote Control Distance: Max 200m Color: White Usage: Rc Car ,RC Boat ,RC TOYS User Manual: English Trademark: Firelap Specification: 28*23*15cm HS Code: 9503208200 Stable signal 2 channel futaba transmitter

This is a very simply 2CH rc transmitter for rc car/rc boat.It is very easy to control for rc beginners,with very cheap prices.
Stable Signal 2.4Hz Channel Futaba Transmitter Made
Specification:
Model TG06 remote control
Channel 2 channel
remote control distance max 200m
Singal 2.4ghz with receiver
OEM Yes
Color white
Usage rc car/rc boat/rc toys


Stable Signal 2.4Hz Channel Futaba Transmitter Made


A.Transmitter Part:
1. Size:14*7*31cm
Antenna Length:11cm 1.Frequency: 2.400-2.4835GHz ISM Spread speture
2. Code Type: FSK
3.Transmitter Power: less than 20 DBm
4.Current Drain: 100mA
5. Modulation signal: 1-2CH, PPM pulse width control signal
6.Working Voltage: DC3.6V-6.0V
7.Control Range: 100M
8.Automatic frequency selection

B.Receiver Part :
Size:4*2*2cm
1.Band: 2.400-2.4835GHz ISM
2.Working Voltage: DC4.8V-6.0V
3.Current Drain: 30mA
4.RX Sensitivity:-110dBm
5.Output signal: 1-2CH,Signal pulse width1.0-2.0ms
6.LED Indicator for binding

High Features:
*Frequency:2.4Ghz
*Full-digital control, The respone speed is 3 milli seconds. it can reach to digital servo`s.( The respone speed is the best in china).
*Can upgrade to lipo-battery design
*Remote control distance adjustable,you can use the button on the transmitter to adjust the distant to from 20 meters to 150 meters. .
* The full-digital control is more safe and reliable
*2CH
*Resolution: 1024(256)
*Able to do settings for differnt ESC ( for car/boat) .

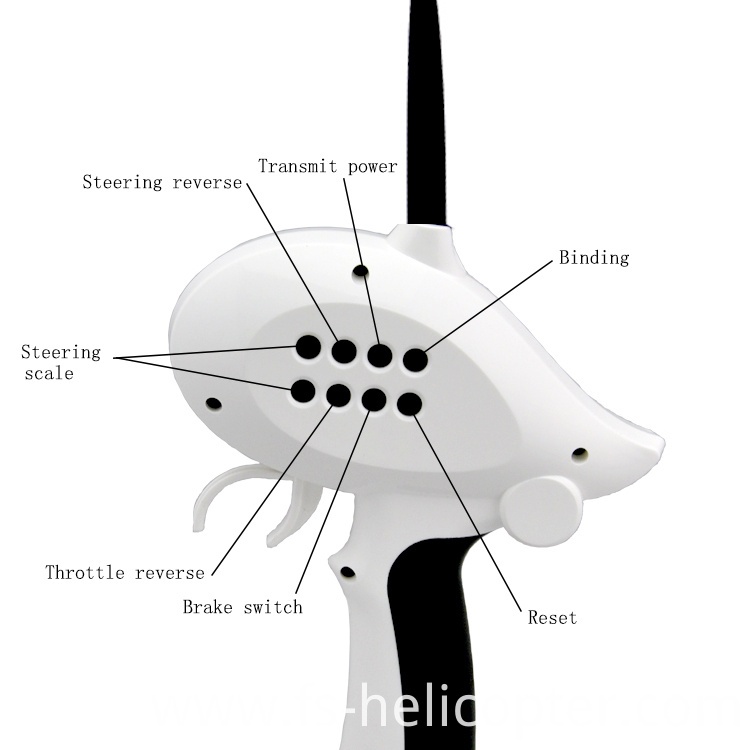

*Adjustable parameters
1.angel adjustment
2.distance adjustment
3.braking adjustament
*Contal distance: 20 to 150 meters.If used for RC Boat,please informe us to adjust the paremeters /distance specific for boat.
Stable Signal 2.4Hz Channel Futaba Transmitter Made
