Home > Products > rc transmitter > Wholesale Color Screen Battery Mini RC Transmitter and Receiver

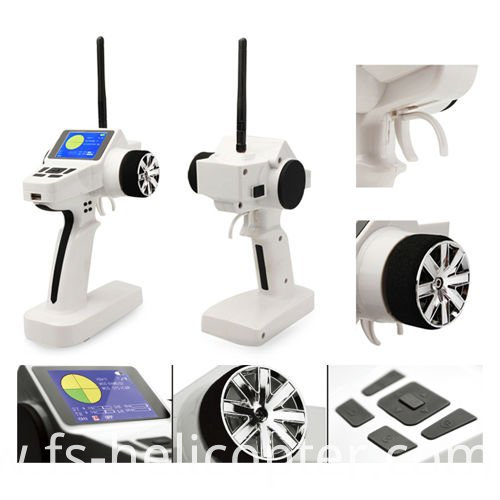

Wholesale Color Screen Battery Mini RC Transmitter and Receiver

Basic Info

Model No.:  TG04

Product Description

Model NO.: TG04 Compatible: Rc Car and RC Boat Color Available: White, Black Stopwatch: Support Languages: English and Chinese Frequency: 2.4GHz RC System Specification: RoHS, CE HS Code: 95030082 Name: Wholesale Color Sreen Battery Mini rc transmitter Power: Battery Tx: 10-Memory, ABS, EPA, Exp Function Screen: 2.4inch TFT Color Screen Channel: 3CH Trademark: Firelap Origin: Shenzhen
Wholesale Color Sreen Battery Mini RC Transmitter And Receiver

 Features of radio Remote Control rc transmitter receiver
1. Be used for Professional RC Car and RC Boat.
2. 2.4 inch TFT color Screen Display
3. Resolution: 1024(256)
4. Display English & Chinese two languages (also, we can do any languages as per your requirement)
5. Can be individually adjusted data for each types of ESC (include RC car and RC boat) 6.Reversible Hand Operation (wheel section can be installed to left-or right hand driving) 7.Real-time dynamic screen
8. Stopwatch function
9.10-model memory, control distance: 150M
10. Exponential (EXP Steering and Thorttle )
11. Steering dual rate (d/r-st)
12. Anti-skid braking system (ABS)
13. Digital trim: Steering trim, throttle trim, steering d/r
14. Function select lever function (fnc-dt1/dt2/dt3/dt4)
15. Tension adjustment function
16. Can be used with Firelap 2.4G MINIZ RC Car, easy to binding
Wholesale Color Screen Battery Mini RC Transmitter and ReceiverWholesale Color Screen Battery Mini RC Transmitter and Receiver
TX module:
1) RF Range: 2.400-2.4835GHz ISM BAND
2) Code Type: FSK
3) RF Power: less than 20 DBm
4) TX Current: 150mA typical
5) Modulation signal: 1-3CH, standard PPM pulse width control signal
6) Working Voltage: DC4.8V-6.0V
7) Automatic selects and change frequency (frequency hopping) after turning on the TX
 Wholesale Color Screen Battery Mini RC Transmitter and ReceiverWholesale Color Screen Battery Mini RC Transmitter and Receiver
RX module:
 1) Frequency Band: 2.400-2.4835GHz ISM BAND
 2) Working Voltage: DC4.8V-6.0V
 3) RX Current: 30mA typical
 4) RX Sensitivity:-110dBm typical
 5) Demodulate Output signal: standard 1-3CH,
 signal pulse width1.0-2.0ms
 6) LED Indicator light for RX Sensitivity and frequency bind
 7)Control Distance: More than 200M on the opening ground.
One Box Contents:
1transmitter, 1 receiver,1 power switch,1power battery box,1 English manual book

Contact us if you need more details on Transmitter and Receiver. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Wholesale、Battery Mini RC Transmitter and Receiver. If these products fail to match your need, please contact us and we would like to provide relevant information.
