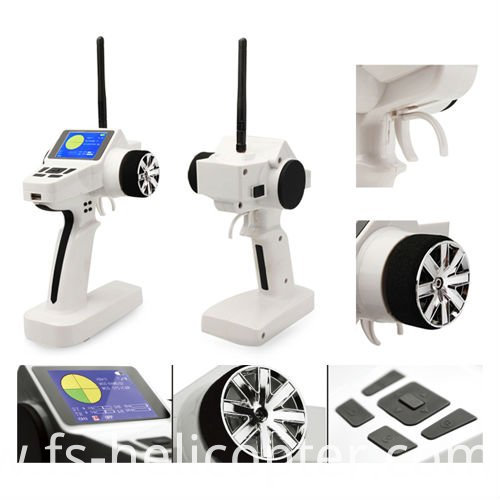

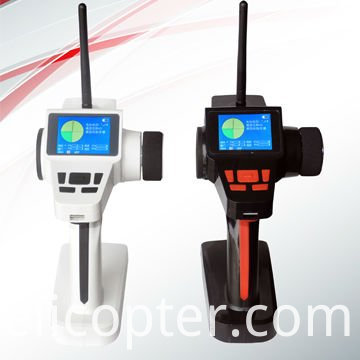

Model No.: TG04
Features of radio remote control rc transmitter receiver
1. Be used for Professional RC Car and RC Boat.
2. 2.4 inch TFT color Screen Display
3. Resolution: 1024(256)
4. Display English & Chinese two languages (also, we can do any languages as per your requirement)
5. Can be individually adjusted data for each types of ESC (include RC car and RC boat)
6.Reversible Hand Operation (wheel section can be installed to left-or right hand driving)
7.Real-time dynamic screen
8. Stopwatch function
9.10-model memory, control distance: 150M
10. Exponential (EXP Steering and Thorttle )
11. Steering dual rate (d/r-st)
12. Anti-skid braking system (ABS)
13. Digital trim: Steering trim, throttle trim, steering d/r
14. Function select lever function (fnc-dt1/dt2/dt3/dt4)
15. Tension adjustment function
16. Can be used with Firelap 2.4G MINIZ RC Car, easy to binding
1) RF Range: 2.400-2.4835GHz ISM BAND
2) Code Type: FSK
3) RF Power: less than 20 DBm
4) TX Current: 150mA typical
5) Modulation signal: 1-3CH, standard PPM pulse width control signal
6) Working Voltage: DC4.8V-6.0V
7) Automatic selects and change frequency (frequency hopping) after turning on the TX
1) Frequency Band: 2.400-2.4835GHz ISM BAND
2) Working Voltage: DC4.8V-6.0V
3) RX Current: 30mA typical
4) RX Sensitivity:-110dBm typical
5) Demodulate Output signal: standard 1-3CH,
signal pulse width1.0-2.0ms
6) LED Indicator light for RX Sensitivity and frequency bind
7)Control Distance: More than 200M on the opening ground.
One Box Contents:
1transmitter, 1 receiver,1 power switch,1power battery box,1 English manual book
